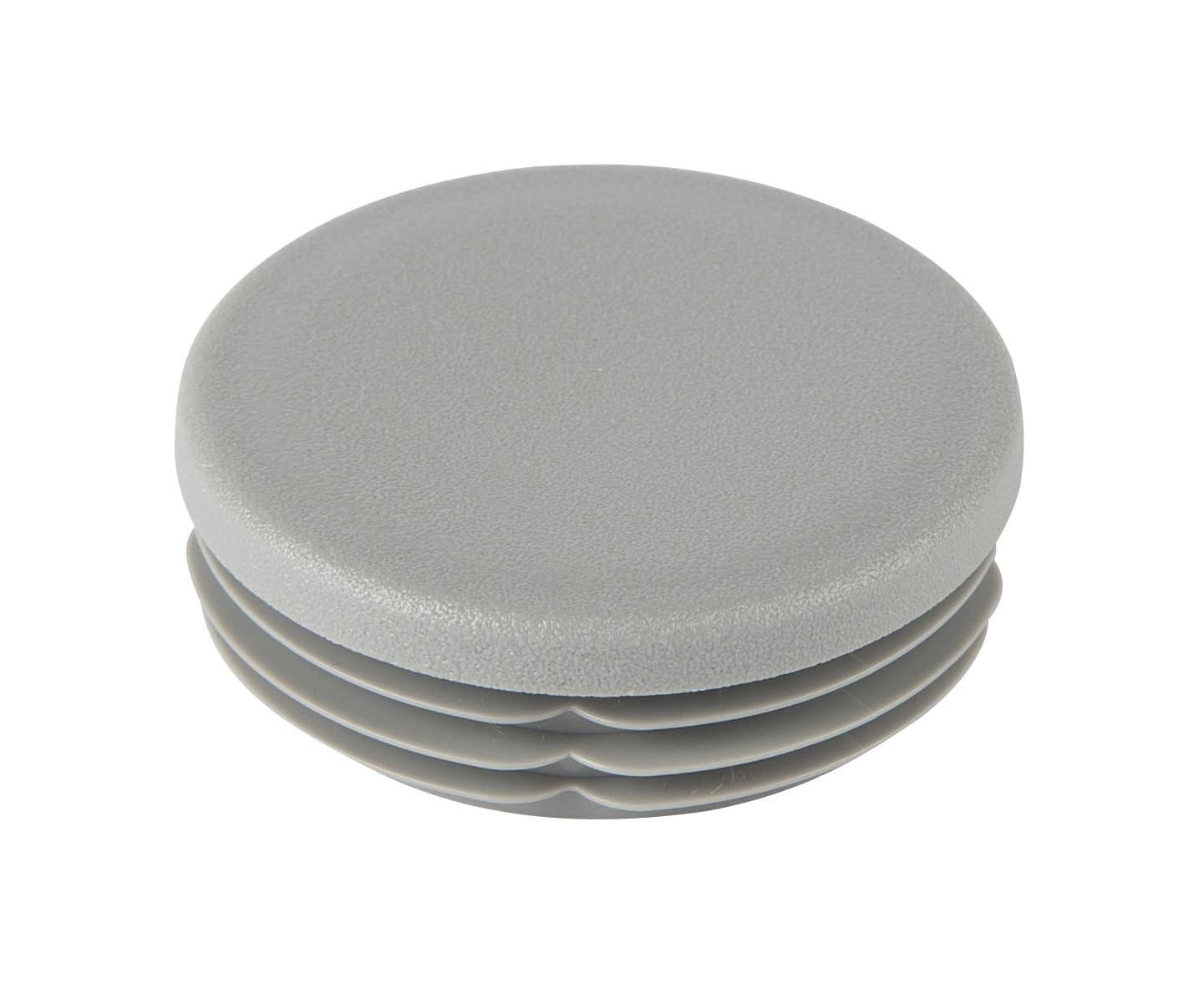

ROUND RIBBED INSERT 90MM TO 273MM

Cotel Round Ribbed Inserts are manufactured in LDPE and are available in black, white and grey. Sizes range from 90mm diameter up to 273mm diameter. Easy to fit into round tubes providing a neat labour saving alternative to welding.
From £1.4000
Colour
Black
White
Mid Grey
Material
LDPE

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

The size of all our tube insert products is based on the outside size of the tube they fit into. Please follow the below guidance to select the correct item. For assistance, please contact our sales department 01282 424376 [email protected]

OUTSIDE SIZE OF TUBE: Measure the external size of your tube, eg if this is 25mm square the correct product would be part 3981/1 (25mm Sq Ribbed Insert 1.0-3.0mm WT).

TUBE WALL THICKNESS: Sometimes referred to as 'gauge size' and listed in some of the product tables as 'WT'. This is the thickness of the tube wall, the ribs on the inserts will suit a range of tube wall thickness. To check the insert will fit the tube inside size minus 2 x wall thickness from the tube outside size.

TYPE: Choose from inserts with flat, domed, lightweight or angled heads. Threaded inserts are tube inserts with moulded or metal threads for use with adjustable feet.

FINISHES & COLOURS: Choose from textured finish, polished finish, chrome capped. Many of our tube inserts are available in the following colours: black, white, mid grey, dark grey and silver.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Part No. D Finish H L Wall Thickness Min Qty Price Lead Time
3957 95 d_up Textured 6 21 1.5-4.0 1
£1.5032
In Stock Add To Cart
4008 219.1 d_up Textured 6 34 3.2-6.5 1
£8.9700
In Stock Add To Cart
3988 168.3 d_up Textured 6 34 2.0-6.5 1
£7.3200
In Stock Add To Cart
3143 110 d_up Textured 6 20 4.5-6.0 1
£3.1964
In Stock Add To Cart
3999 110 d_up Textured 6 28 2.0-4.5 1
£3.1964
In Stock Add To Cart
4006 177.8 d_up Textured 6 34 3.2-8.0 50
£7.6000
2-3 Weeks Add To Cart
3987 114.3 d_up Textured 6 28 3.2-5.5 1
£3.2200
In Stock Add To Cart
4005 165.1 d_up Textured 6 34 3.2-7.5 20
£7.5000
2-3 Weeks Add To Cart
3145 90 d_up Textured 5 20 2.5-5.0 1
£1.4000
In Stock Add To Cart
3990 193.7 d_up Textured 6 34 2.9-7.0 1
£8.6399
In Stock Add To Cart
4009 273 d_up Textured 6 39 2.9-6.0 9
£18.1000
2-3 Weeks Add To Cart
3959 105 d_up Textured 6 28 2.0-4.5 1
£3.6069
In Stock Add To Cart
3993 125 d_up Textured 6 34 1.0-4.0 1
£5.8176
In Stock Add To Cart
3142 100 d_up Textured 6 28 1.5-4.0 1
£3.4500
In Stock Add To Cart
4002 100 d_up Textured 6 28 4.0-6.5 1
£3.4500
In Stock Add To Cart
4003 159 d_up Textured 6 34 2.0-6.5 1
£6.5000
In Stock Add To Cart
3994 130 d_up Textured 6 34 2.0-6.0 40
£6.0774
2-3 Weeks Add To Cart
3992 160 d_up Textured 6 34 2.5-7.0 1
£7.2201
In Stock Add To Cart
3995 150 d_up Textured 6 34 2.0-6.0 1
£6.3928
In Stock Add To Cart
3147 120 d_up Textured 6 28 2.0-4.0 1
£6.1305
In Stock Add To Cart
3991 140 d_up Textured 6 34 2.0-6.5 1
£6.2332
In Stock Add To Cart
4004 133 d_up Textured 6 34 2.0-6.0 40
£5.8300
2-3 Weeks Add To Cart
3957W 95 d_up Textured 6 21 1.5-4.0 125
£1.3575
2-3 Weeks Add To Cart
3988W 168.3 d_up Textured 6 34 2.0-6.5 25
£7.3200
2-3 Weeks Add To Cart
3999W 110 d_up Textured 6 28 2.0-4.5 70
£3.2000
2-3 Weeks Add To Cart
4006W 177.8 d_up Textured 6 34 3.2-8.0 50
£7.6000
2-3 Weeks Add To Cart
3987W 114.3 d_up Textured 6 28 3.2-5.5 60
£3.2200
2-3 Weeks Add To Cart
4005W 165.1 d_up Textured 6 34 3.2-7.5 20
£7.5000
2-3 Weeks Add To Cart
3145W 90 d_up Textured 5 20 2.5-5.0 250
£1.4000
2-3 Weeks Add To Cart
3990W 193.7 d_up Textured 6 34 2.9-7.0 45
£8.6400
2-3 Weeks Add To Cart
3959W 105 d_up Textured 6 28 2.0-4.5 75
£3.6100
2-3 Weeks Add To Cart
3993W 125 d_up Textured 6 34 1.0-4.0 50
£5.8200
2-3 Weeks Add To Cart
3142WHITE 100 d_up Textured 6 28 1.5-4.0 80
£3.4500
2-3 Weeks Add To Cart
4002W 100 d_up Textured 6 28 4.0-6.5 80
£3.4500
2-3 Weeks Add To Cart
3994W 130 d_up Textured 6 34 2.0-6.0 40
£6.0800
2-3 Weeks Add To Cart
3992W 160 d_up Textured 6 34 2.5-7.0 30
£7.2200
2-3 Weeks Add To Cart
3995W 150 d_up Textured 6 34 2.0-6.0 30
£6.3928
2-3 Weeks Add To Cart
3147W 120 d_up Textured 6 28 2.0-4.0 60
£6.1300
2-3 Weeks Add To Cart
3991W 140 d_up Textured 6 34 2.0-6.5 40
£6.2300
2-3 Weeks Add To Cart
3957MG 95 d_up Textured 6 21 1.5-4.0 125
£1.3575
2-3 Weeks Add To Cart
3988MG 168.3 d_up Textured 6 34 2.0-6.5 25
£7.3200
2-3 Weeks Add To Cart
3999MG 110 d_up Textured 6 28 2.0-4.5 70
£3.2000
2-3 Weeks Add To Cart
4006MG 177.8 d_up Textured 6 34 3.2-8.0 50
£7.6000
2-3 Weeks Add To Cart
3987MG 114.3 d_up Textured 6 28 3.2-5.5 60
£3.2200
2-3 Weeks Add To Cart
4005MG 165.1 d_up Textured 6 34 3.2-7.5 20
£7.5000
2-3 Weeks Add To Cart
3145MG 90 d_up Textured 5 20 2.5-5.0 250
£1.4000
2-3 Weeks Add To Cart
3990MG 193.7 d_up Textured 6 34 2.9-7.0 45
£8.6400
2-3 Weeks Add To Cart
3959MG 105 d_up Textured 6 28 2.0-4.5 75
£3.6100
2-3 Weeks Add To Cart
3993MG 125 d_up Textured 6 34 1.0-4.0 50
£5.8200
2-3 Weeks Add To Cart
3142MG 100 d_up Textured 6 28 1.5-4.0 80
£3.4500
2-3 Weeks Add To Cart
4002MG 100 d_up Textured 6 28 4.0-6.5 80
£3.4500
2-3 Weeks Add To Cart
3994MG 130 d_up Textured 6 34 2.0-6.0 40
£6.0800
2-3 Weeks Add To Cart
3992MG 160 d_up Textured 6 34 2.5-7.0 30
£7.2200
2-3 Weeks Add To Cart
3995MG 150 d_up Textured 6 34 2.0-6.0 30
£6.3900
2-3 Weeks Add To Cart
3147MG 120 d_up Textured 6 28 2.0-4.0 60
£6.1300
2-3 Weeks Add To Cart
3991MG 140 d_up Textured 6 34 2.0-6.5 40
£6.2300
2-3 Weeks Add To Cart
