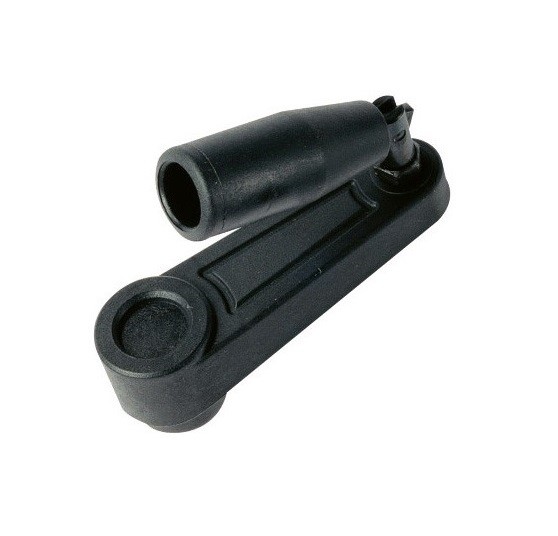

CRANK HANDLE WITH REVOLVING FOLDING HANDLE FEMALE THREAD

Our Crank Handles with a Revolving Folding Handle Female Thread contain a brass insert and are made from reinforced polyamide. These matte finish handles are resistant to oil, grease and other chemical agents.

From £19.8119

Colour

Black

Material

Reinforced Polyamide

Insert Material

Brass

Skip to the end of the images gallery

Skip to the beginning of the images gallery

View Full Size

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

We offer a comprehensive range of different style knob, handle and handwheel products. Please consider the below when choosing the correct component. For assistance, please contact our sales department 01282 424376 [email protected]

DIAMETER / LENGTH: This the main dimension of the hand operated part of the component (measure the diameter across the handwheel or the length of the handle).

THREAD SIZE: This is thickness of the thread (M6, M8, M10, M12, M16). Generally, this is appropriate to the size of the component and is chosen based on the strength of the fixing required.

MATERIALS: Most of our knob and handle products are moulded in reinforced polyamide (PA6+GF) which offers temperature resistance -10 to +110°C. Female inserts are available in brass, zp steel and stainless steel, male inserts are zp steel and stainless steel.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Part No. D d H m d1 d3 h3 Q h B Material Insert Material A dl L Ht R L1 Colour Availability Min Qty Price Lead Time Qty Modal Action

4432/80/4

Part Number	4432/80/4
D	30
d	26
H	33
m	19
d1	M8
d3	17
h3	3
Q	18
h	9
B	11
Material	Reinforced Polyamide
Insert Material	Brass
A	21.5
dl	20
L	106
Ht	57
R	80
L1	54
Colour	Black

Reinforced Polyamide

Brass

21.5

106

Black

2-3 Days

£19.8119

2-3 Days

100+ £17.9298 each | 250+ £16.5429 each | 500+ £14.5617 each | 1000+ £13.2740 each

Add To Cart

4432/110/6

28.5

Part Number	4432/110/6
D	33
d	28.5
H	39
m	22
d1	M12
d3	21
h3	3.5
Q	18
h	11
B	12
Material	Reinforced Polyamide
Insert Material	Brass
A	22
dl	25
L	138
Ht	67.5
R	110
L1	75
Colour	Black
