ONE-PIECE ADJUSTABLE FOOT FOR SQUARE TUBE

One-Piece Adjustable Feet for Square Tube are manufactured in black nylon and are available in sizes ranging from 20mm square to 50mm square. Suitable for heavier duty applications these one-piece adjustable feet are both strong and durable.
From £0.5400
Colour
Black
Material
Nylon

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

We offer a large range of different style adjustable feet, please consider the below when choosing the correct product. For assistance, please contact our sales department 01282 424376 [email protected]

FOOT TYPE: Fixed (Where the screw is fixed rigid to the base). Articulating (Where the screw rotates on the base). Swivel (Where the screw has a ball joint that fits into the base, ideal for uneven surfaces).

BASE SIZE & TYPE: Diameter (Measure the outside diameter of the foot pad). Height (Ensure your product is raised off the surface at the correct height). Special Options (Bolt-down bases and anti-slip bases are available).

THREAD SIZE: Thread diameter (This is thickness of the thread M6, M8, M10, M12, M16, M20, M24, M30). Thread Length (Choose what length of thread is suitable for your application).

MATERIALS: Base material (Choose from plastic, rubber, zp steel or stainless steel). Thread material (Choose from zp steel or stainless steel).

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

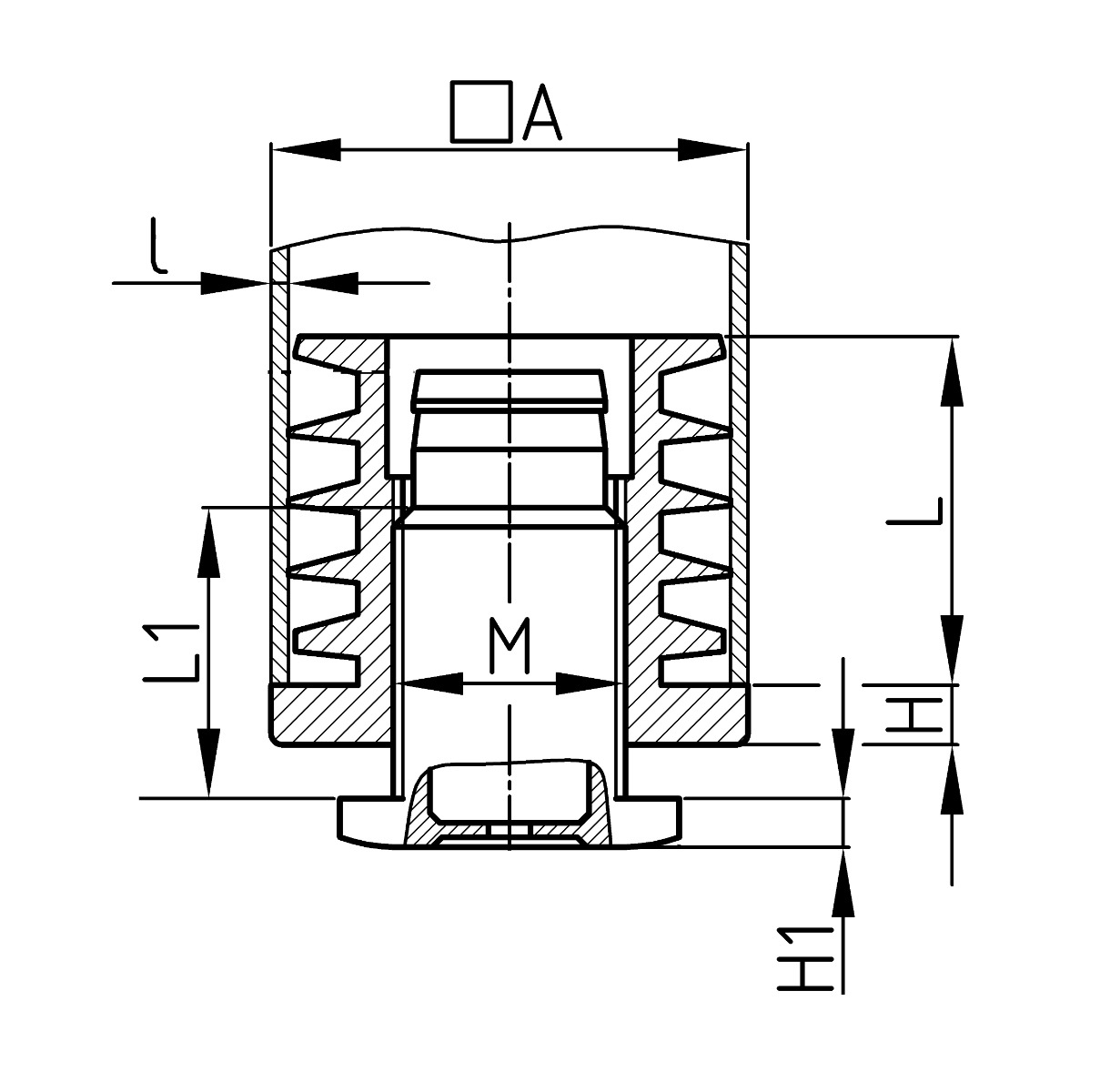

Part No. L l (WT) Thread Axial load (kg) Min Qty Price Lead Time
2200/1 20 x 20 l_up 1.5-2.0 M10 x 25 100 1
£0.8141
In Stock Add To Cart
2201/1 22 x 22 l_up 1.5-2.0 M10 x 25 100 1
£0.8300
In Stock Add To Cart
2202/1 25 x 25 l_up 1.5-2.0 M16 x 25 150 1
£0.5400
In Stock Add To Cart
2203/1 30 x 30 l_up 1.5-2.0 M22 x 25 300 1
£0.5600
In Stock Add To Cart
2204/1 35 x 35 l_up 1.5-2.0 M22 x 25 300 1
£0.7089
In Stock Add To Cart
2205/1 40 x 40 l_up 1.5-2.0 M22 x 25 300 1
£0.8138
In Stock Add To Cart
2207/1 50 x 50 l_up 1.5-2.0 M30 x 30 300 1
£1.1041
In Stock Add To Cart
