6 POINT HANDWHEEL PLAIN BORE

Plain bore 6 Point Handwheels feature a modern lobed design handwheel with a moulded insert in brass or zinc plated steel. The plain bore allows the product to be fixed to unthreaded bars, rods and tubes. This cavity free handwheel is used widely on food processing equipment, medical equipment and general machinery.
From:
£1.31
To:
£2.80
Colour
Material
Reinforced Polyamide
Insert Material
Steel ZP
Brass

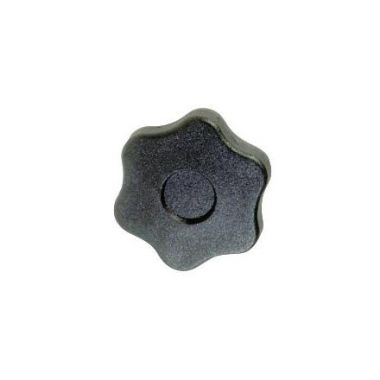

main product photo
reset

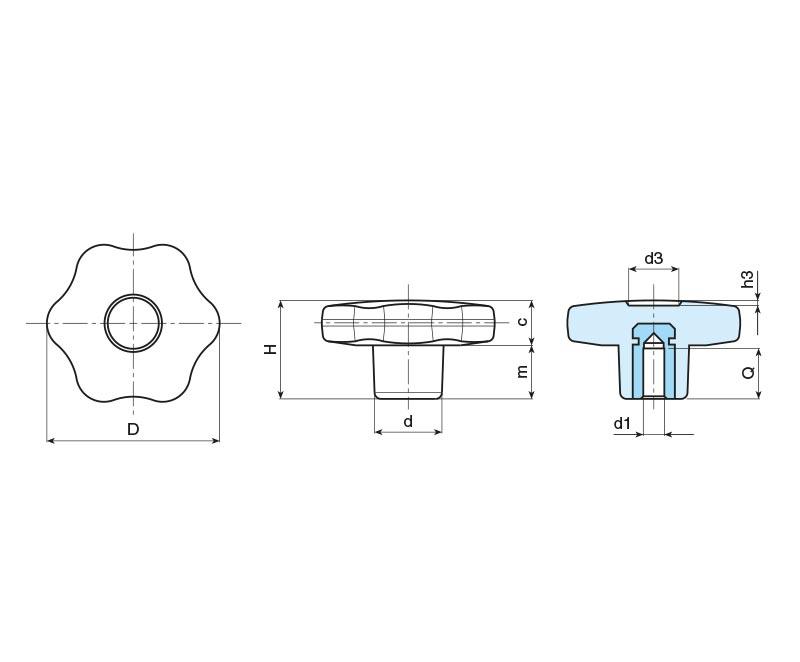

Part No.
D
d
H
m
d3
h3
Q
d1 H7
Min Qty
Price
Lead Time
4638/30/26 d_lw 30 15 22 11 9 1.5 15 6 1
£1.31 		In Stock Add To Cart
4638/40/26 d_lw 40 17 24.5 12.5 12 1 15 6 1
£1.87 		In Stock Add To Cart
4638/50/26 d_lw 50 20 29 15 14.5 1.5 15 6 1
£2.21 		2-3 Days Add To Cart
4638/50/28 d_lw 50 20 29 15 14.5 1.5 17 10 1
£2.21 		In Stock Add To Cart
4638/60/27 d_lw 60 24 34 18 18 1.5 18 8 1
£2.76 		In Stock Add To Cart
4638/60/28 d_lw 60 24 34 18 18 1.5 25 10 1
£2.76 		In Stock Add To Cart
4638/60/29 d_lw 60 24 34 18 18 1.5 22 12 1
£2.80 		In Stock Add To Cart
Order in multiples of
